6-3/4" Long equalizer connects double-eye springs on tandem- or triple-axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Center bolt hole is 9/16" in diameter.
Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
Center bolt hole diameter: 9/16"
Left and right bolt hole diameter: 9/16"

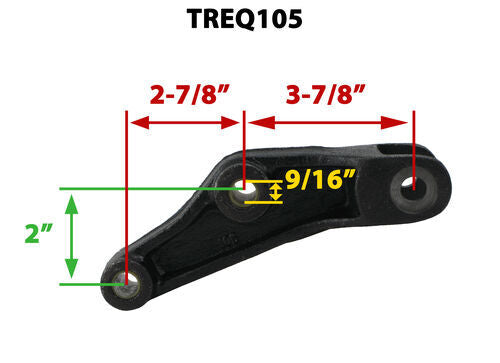

Dimensions:
Distance between outer shackle bolt holes (center on center): 6-3/4"
Distance between hanger bolt hole and Side A outer shackle bolt hole (center on center): 2-7/8"
Distance between hanger bolt hole and Side B outer shackle bolt hole (center on center): 3-7/8"
Height from shackle bolt hole to hanger bolt hole: 2"
